Smart High Speed Camera for Automotive / Military / Academic / Industry / R&D / Testing
The compact light weight camera system for limited space installations
Full Resolution 1,008 x 896 Pixel
- 12,000 fps (GO-12)
- 9,000 fps (GO-9)
- 1,008 x 896 Pixel
Compact & Light Weight
- 128x128x135mm / 2.9kg
ACS High Quality Sensitive Sensor
- ISO 100,000(Mono)/ISO 20,000(Color)
Additional Product Details
Features
- Compact/Light weight:
Compact and light weight camera body at 128×128×135mm - 2.9kg for an installation with limited space that fits various research fields - Web application control:
Camera controlled from web browser without dedicated control software - Save to external SSD:
Connect an external SSD to camcorder to save data at high speed
- Perfectly fit into applications where there are in no power
- Instantly powering after installation without cables to minimize the preparation time

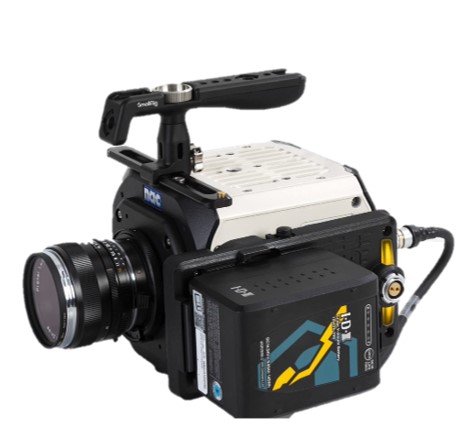

Battery Operation
- Support IDX Battery
- Simple cabling without AC Power

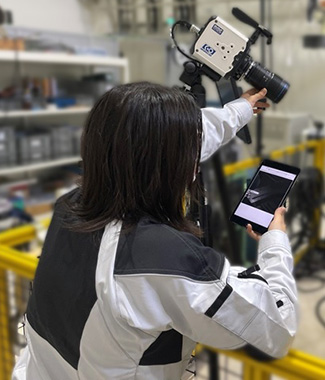

- Easy to adjust imaging view with your smartphone or tablet PC

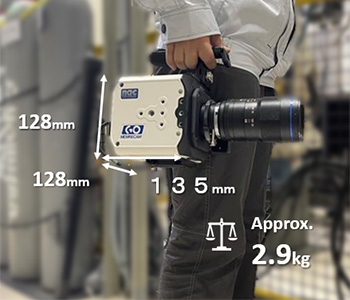

Compact and Lightweight

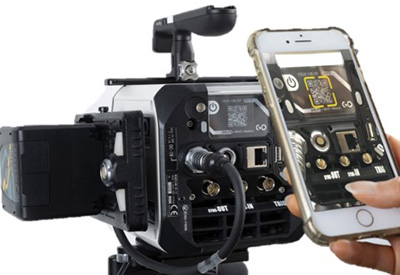

Wireless - Web Application Control
- Smart operation from tablet PC
- Control from web application
Specifications
| Sensor | 0.9M Pixel, CMOS |
|---|---|
| Active Pixel | 1,008 x 896 |
| ISO (REI) | Color ISO 2,000~40,000 / Mono ISO 10,000~200,000 |
| Electric Shutter | 1/10~1/909,000 sec |
| Memory | 16GB / 32GB / 64GB |
| Memory Segment | Up to 64 Segments |
| Bit Depth | 8bit / 12bit |
| Lens Mount | F-mount (Support for Iris ring-less Lens) C-mount |
| HDR* | Allows more realistic depiction of brightness and darkness |
| Input/Output Signall | SYNC IN/OUT CMOS 5V TRIG IN CMOS 5V |
| Trigger Mode | NORMAL |
| Image Trigger | Triggered by detected shifts in pixel intensity |
| Frame Straddling Shooting | Record continuous image pairs for PIV analysis Support minimum 210ns laser pulse. |
| Interface | 1000BASE-T/USB3.1/2.0 |
| Control | PC (MLink) or Pads (Web Application) |
| Power | 13-32V |
| Approx. Dimensions | W128 × H128 × D135mm (without protuberance) |
| Approx. Weight | 2.9kg |
*Only monochrome. Only MLink support HDR with GO-9/12
Sample Recording Times and Resolution
| Frame Rate | GO-12 | GO-9 | ||
|---|---|---|---|---|
| (fps) | Pixel (H) X (V) |
Time * in sec |
Pixel (H) X (V) |
Time * in sec |
| 10~9,000 | 1,008 x 896 | - | 1,008 x 896 | 2.81 |
| 10,000 | 1,008 x 896 | 2.53 | 1,008 x 800 | 2.83 |
| 12,000 | 1,008 x 896 | 2.11 | 1,008 x 656 | 2.88 |
| 13,000 | 1,008 x 800 | 2.18 | 1,008 x 608 | 2.87 |
| 15,000 | 1,008 x 704 | 2.15 | 1,008 x 512 | 2.95 |
| 20,000 | 1,008 x 512 | 2.21 | 1,008 x 384 | 2.95 |
| 25,000 | 1,008 x 400 | 2.27 | 1,008 x 272 | 3.33 |
| 40,000 | 1,008 x 208 | 2.72 | 1,008 x 160 | 3.54 |
| 60,000 | 1,008 x 128 | 2.95 | 1,008 x 96 | 3.94 |
| 100,000 | 1,008 x 48 | 4.72 | 1,008 x 32 | 7.09 |
| 150,000 | 1,008 x 16 | 9.41 | 1,008 x 16 | 9.41 |
| 220,000 | 1,008 x 16 | 6.41 | - | - |
*Recording Time with 32GB memory at 12-bit recording
Options
TBA
